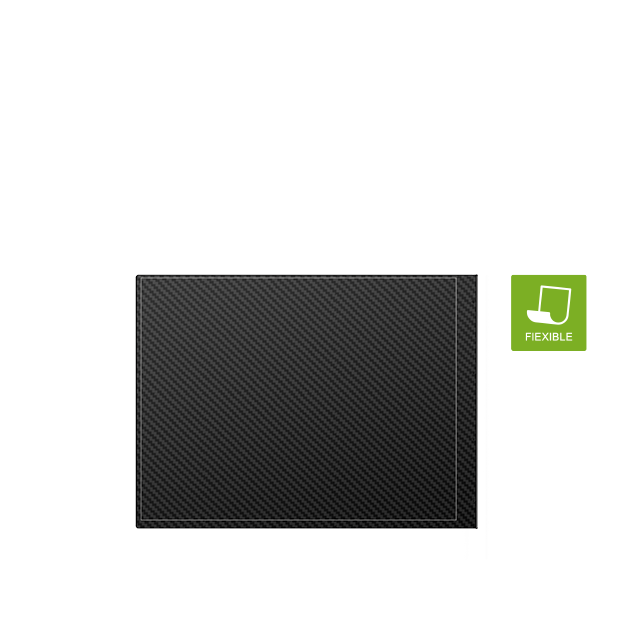

NDT 1013LA (10×13-inch flexible NDT Flat Panel Detector)
NDT 1013LA is a 10×13-inch wireless and portable flat panel detector based upon iRay’s innovative and unbreakable flexible sensor technology. The detector features a compact and industrially rugged design, which provides high radiation resistance, wide environmental capabilities, and overall high reliability. Data and signal communication is achieved either via a wired or a wireless interface. The iRay software SDK provides support for detector calibration, configuration, image acquisition, pre-processing and viewing on an end-user tablet or workstation running the MS Windows operating system. With its exceptional image quality and reliability, the NDT 1013LA is an excellent choice for industrial applications such as portable field inspection, or EOD/IED based security scenarios.
Innovative flexible a-Si sensor technology
252.8×331.8 mm² imaging area
Best-in-class 100 μm pixel pitch
Up to 180 sec. X-ray exposure window
Robust wired and 5G wireless data interface
Thin and lightweight design with narrow dead space edges (7, 7, 9.6 mm)
More than 8 hours battery capacity
