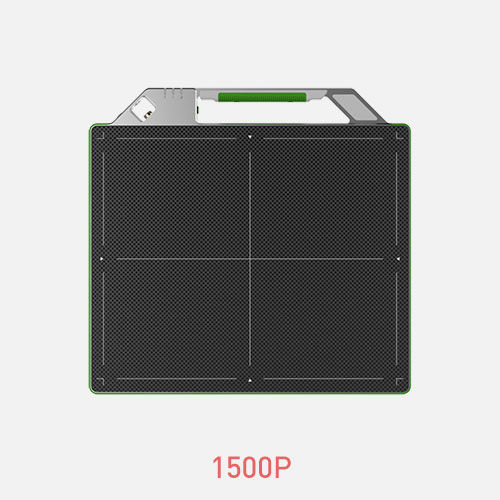

CareView 1500P 17″x14″ Tethered X-Ray DR Panel
The CareView 1500P Tethered X-Ray DR Panel is a high-performance digital flat panel detector designed for advanced veterinary and medical radiographic imaging. It delivers fast, high-resolution image acquisition with excellent sensitivity, making it ideal for modern digital X-ray workflows in clinical and hospital environments.
The detector features a 17" × 14" active imaging area and uses CsI (Cesium Iodide) direct-deposition scintillator technology to enhance image quality, improve X-ray absorption, and produce sharp diagnostic detail. Its tethered (wired) design ensures stable, uninterrupted data transmission, making it highly reliable for continuous clinical use.
Built with a lightweight carbon fiber front and high-strength aluminum alloy back, the system is designed for durability while maintaining portability and easy integration into existing X-ray systems. It supports fast image acquisition and consistent performance, making it suitable for veterinary clinics, hospitals, and diagnostic imaging centers requiring reliable daily use.
Active Area: 17" × 14" (433.7 × 354.8 mm)
Pixel Matrix: 2816 × 2304
Pixel Pitch: 154 μm
Limiting Resolution: ~3.25 lp/mm
Dynamic Range: ~82 dB
A/D Conversion: 16-bit
Device Size: 477.4 × 353.6 × 18.4 mm
Weight: ~4 kg
Communication: Gigabit Ethernet (wired)
Image Acquisition Time: 2–3 seconds
Power Supply: 100–250V AC
Frequency: 50 Hz
Battery: 3260 mAh, 14.8V
